Forklift tire bead corrosion is the deterioration of the tire bead area – the region where the tire seals against the rim flange – caused by moisture ingress, salt contamination, chemical exposure, or mechanical fretting between the bead and rim seat. It typically starts as a slow air leak and progresses to bead wire exposure, rubber cracking, and eventually complete tire detachment from the rim during operation.
In coastal industrial parks, bead corrosion can become a significant maintenance cost driver for forklift fleets.

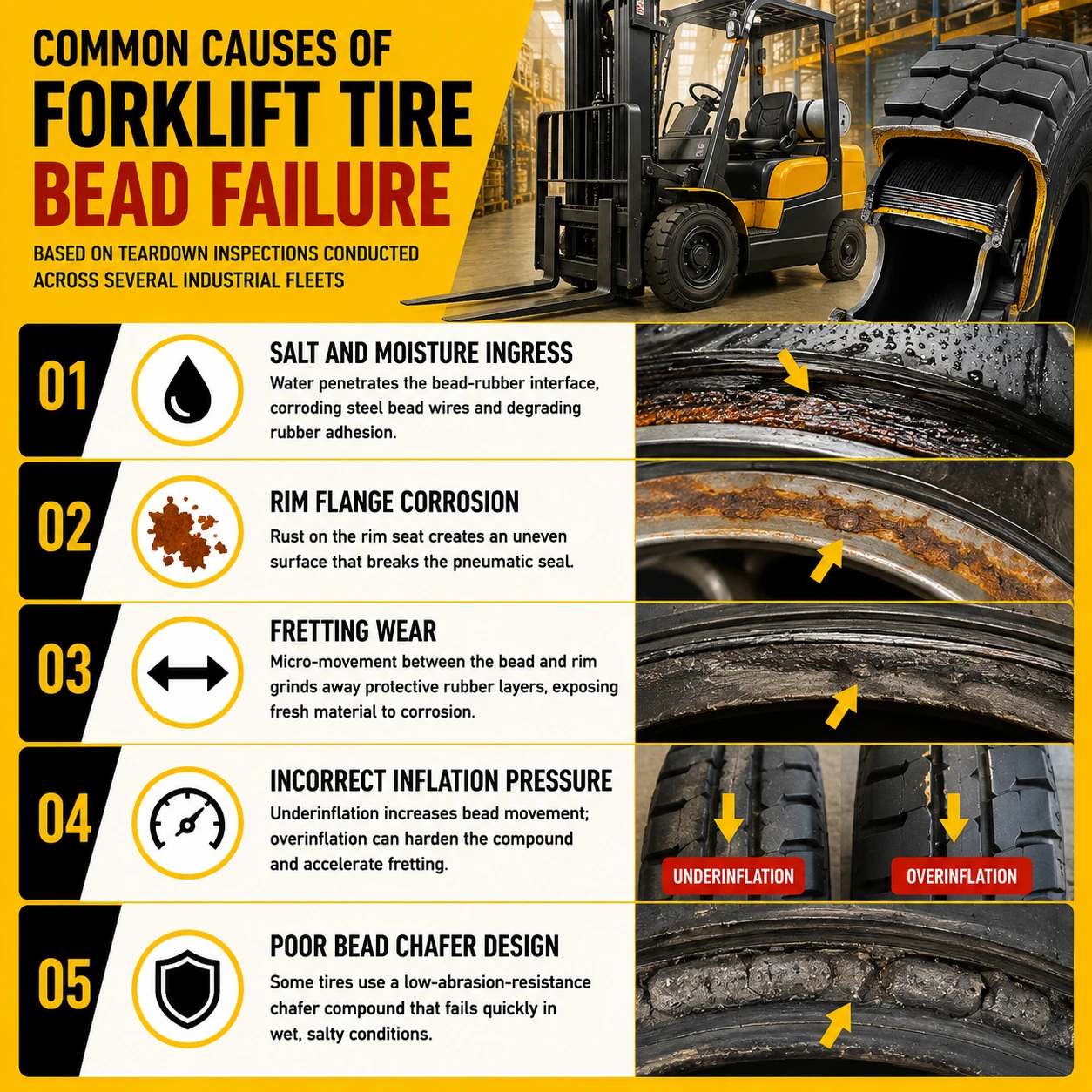

Based on teardown inspections conducted across several industrial fleets, we identified five primary contributors:
Salt and moisture ingress – Water penetrates the bead-rubber interface, corroding steel bead wires and degrading rubber adhesion.
Rim flange corrosion – Rust on the rim seat creates an uneven surface that breaks the pneumatic seal.
Fretting wear – Micro-movement between the bead and rim grinds away protective rubber layers, exposing fresh material to corrosion.
Incorrect inflation pressure – Underinflation increases bead movement; overinflation (as we learned) can harden the compound and accelerate fretting.
Poor bead chafer design – Some tires use a low-abrasion-resistance chafer compound that fails quickly in wet, salty conditions.
“Another bead leak,” the shift lead said, kicking the left front tire. “Third one this quarter.”
We ran 18 forklifts in a coastal industrial park – mixed cargo, concrete and asphalt surfaces, daily monsoon rain, and enough road salt from nearby truck washes to coat everything in a fine white haze. The failure was always the same: bead area corrosion that started as a slow leak and ended with the tire peeling off the rim seat during a turn. One unit tipped a pallet of electronics when the left front went flat mid-turn. No injury, but the customer billed us for $22,000 in damaged goods.
Maintenance supervisor Jin thought the problem was rim material. “Swap the painted rims for galvanized.” Failures dropped from about once every six weeks to roughly once every eight weeks – better, not solved.
Operator Minho suggested higher pressure. “Tighter bead seat, less movement, less corrosion.” We increased pressure from 90 psi to 110 psi on three test units. The failure rate got worse: two bead corrosion failures in about five weeks, both with cracking visible through the bead filler. Higher pressure didn’t stop moisture ingress – it made the rubber harder and more brittle around the rim flange, accelerating fretting.
During one teardown, we noticed a dull, polished ring on the rim seat – roughly 8mm wide – where the bead rests. Jin ran a fingernail across it. “That’s not corrosion. That’s fretting.”
He was right. The bead wasn’t just corroding from outside moisture. It was micro-moving against the rim seat thousands of times per shift, grinding through the protective bead chafer and exposing fresh rubber to salt and humidity. Corrosion started at those fretted spots, then tracked inward along the bead wires.
We measured rim seat temperatures with an infrared gun after long runs. The left front (driver side, closest to standing water near loading docks) consistently ran noticeably hotter than the right front – typically a difference of several degrees Celsius. Why? Three factors: direct afternoon sun exposure on that side, poor drainage near the left-side dock, and operator habit – drivers turned left into the loading bay more often, adding lateral load. Hotter rubber, more micro-movement, faster fretting. That’s why the left front failed much more often than any other position.
We couldn’t eliminate the salt or rain. We couldn’t repave the industrial park. So we changed the tire specification.
The new tires used a corrosion-resistant bead package that included:
Brass-coated bead wires – widely used in industrial tire construction because of their corrosion resistance and excellent rubber-to-wire bonding characteristics.
An improved bead chafer compound with higher abrasion and moisture resistance.
A higher-modulus bead filler – not to stop corrosion directly, but to reduce micro-creep and fretting, which in turn limits the exposure of fresh rubber to corrosive agents.
A redesigned bead seat geometry for more even contact pressure distribution.
No “revolutionary” claims. Just material and design changes aligned with established tire engineering practices and rim-fitment principles defined by ETRTO rim flange damage and tyre bead corrosion guidance and TRA standards.
We also added a weekly inspection: look for the first signs of that polished fretting ring. If found, we demounted, cleaned, and applied a ceramic-filled anti-fretting paste (not grease). That caught issues before they became full corrosion failures.
What we never proved: Was fretting the primary cause that enabled corrosion, or did corrosion weaken the bead first, making it more prone to fretting? The new tire package handled both reasonably well. But we had one failure at roughly 1,900 hours with no visible fretting or corrosion – an internal bead wire break of unknown origin. Possibly a manufacturing anomaly.
On the 18 forklifts, bead corrosion failures dropped from about once every 800 operating hours to roughly once every 2,400 hours. The left front bias disappeared – failures were evenly distributed. Maintenance logs showed significantly fewer failures in the 14 months after the change compared with the 12 months before.
Finance calculated annualized savings at approximately $47,000 in parts, labor, and emergency shipping – excluding the $22,000 electronics damage event, which never repeated.
Not all tires handle bead corrosion the same way. The difference comes down to several engineering details:
Bead wire coating – Brass-coated wires resist rust far better than plain steel. When moisture reaches the bead area, uncoated wires corrode quickly, losing strength and causing the bead to loosen.
Bead chafer compound – This is the rubber layer that contacts the rim. A high-abrasion, low-permeability chafer resists fretting and blocks moisture from wicking into the bead structure.
Bead filler modulus – A stiffer (higher-modulus) filler reduces cyclic micro-movement under load. Less movement means less fretting, which means less exposure of fresh rubber to salt and water.
Contact pressure distribution – A well-designed bead seat geometry spreads clamping force evenly, avoiding hot spots that accelerate fretting and localized corrosion.
When these four elements work together, the tire’s bead area can survive years of wet, salty operation without premature failure.
Bridgestone rim maintenance and bead corrosion inspection guidelines emphasize that clean rim seats are essential. For fleet operators in coastal, high-humidity, or chemically aggressive environments:
Inspect rim seats regularly – Look for polished fretting rings, not just rust. That’s your earliest warning.
Measure temperature differences across positions – A consistently hotter corner (e.g., left front) often points to drainage, sun exposure, or operator pattern.
Don’t automatically raise pressure – Higher pressure made our failures worse. Stay within manufacturer specs and consider a moderate pressure instead of overinflation.
Specify corrosion-resistant bead packages – Look for brass-coated bead wires, upgraded bead chafer compounds, and designs that minimize fretting.
Keep rim seats clean and use anti-fretting paste – Not grease. Ceramic-filled pastes reduce micro-movement without trapping dirt.
Your fleet may be at higher risk of bead corrosion if:
✓ Operating within 20 km of the coast
✓ Frequent exposure to standing water
✓ Regular contact with salt, fertilizer, or chemicals
✓ Repeated bead leaks on the same wheel position
✓ Corrosion visible on rim seats
If two or more of these conditions apply, a tire specification review may be worthwhile.
What are the earliest signs of forklift tire bead corrosion?
An abnormal temperature increase at the bead area compared with other wheel positions (measured by infrared), a visible polished ring on the rim seat after demounting, or slow pressure loss that cannot be explained by a sidewall puncture.
Can higher tire pressure prevent bead leaks?
Not necessarily. In our case, higher pressure made failures worse by hardening the rubber and increasing fretting. Correct pressure is important, but overinflation is counterproductive.
How do you inspect forklift tire bead damage without demounting?
You can’t fully inspect without demounting. But early indicators include uneven bead seat temperatures (thermal imaging) and recurring slow leaks that seal temporarily with soapy water but return within days.
When should a forklift tire be replaced due to bead corrosion?
If you see any exposed bead wire, deep cracks in the bead filler, or a significantly enlarged fretting ring compared with previous inspections, replace the tire immediately. Running it risks sudden detachment.
Is brass-coated bead wire worth the extra cost?
Based on our data, yes. The incremental cost per tire is modest, but the reduction in bead corrosion failures – from about 800 to about 2,400 hours – delivered payback within the first year.
Forklift tire bead corrosion is often caused by a combination of moisture ingress and bead-to-rim fretting.
Higher inflation pressure does not necessarily reduce bead failures – it can make them worse.
Regular rim seat inspections can detect fretting before corrosion develops.
Tire construction matters: brass-coated bead wires, chafer compound, bead filler modulus, and contact pressure distribution all play a role.
Coastal fleets can significantly reduce downtime by specifying corrosion-resistant bead packages.
The lessons from this project changed how we specify tires for coastal industrial parks. We now prioritize designs that combine:
Brass-coated bead wires
High-abrasion, low-moisture-permeability bead chafer compounds
Optimized bead filler modulus to control fretting
Consistent rim seat geometry for even pressure distribution
Rather than focusing on a single feature, the design combines bead wire protection, fretting resistance, and moisture control as an integrated bead package.
GREAMARK’s industrial tire series incorporates these design features and is available through RUNGOLD for applications requiring bead corrosion resistance in wet, salty, or chemically aggressive environments. For technical specifications or help with a similar fleet issue, contact RUNGOLD with your operating conditions.
