“It’s squishy again,” the operator said.
Second time that month. Crane 4, left front tire. Same spot. We’d already replaced the tire once after a visible belt separation – the kind where you see a bulge, then a crack, then the whole tread peels back like a banana.
But this time there was no bulge. Just heat.
The operator, a guy named Santos who’d run that crane for seven years, showed me his phone. He’d been pointing an infrared gun at the same spot every afternoon for two weeks. “Right front runs 72°C,” he said. “Left front, 87°C. Every day.”
We didn’t listen fast enough.
Three days later, the left front tire let go. Belt separation, full width. The steel belts (yes, even on a bias-ply construction – some of our RUNGOLD crane tires use a single steel breaker belt) had shifted and ground into each other until the rubber gave up.
Inspection logs showed we’d done the standard daily walk-around. No cuts, no bulges, pressure okay. But nobody had taken a thermal reading except Santos. And nobody had asked why that tire ran consistently hotter.
That’s the thing about belt separation in palm oil estate crane work: it doesn’t appear out of nowhere. It follows a chain.
Stage one is invisible – micro-stress from every lift, every turn on compacted laterite roads. Stage two shows up as heat, small surface changes, or a slight “flat spot” feel. Stage three is the blowout.
We missed stage two because our maintenance schedule was built for visible damage.
After Crane 4’s tire failed, we sat down with Santos and the maintenance lead, a woman named Mei. We looked at three months of data – messy, incomplete data, because nobody had been systematic about it.
Two patterns emerged. First, tires on the right side of the crane ran consistently cooler than left-side tires, by about 5–8°C. We think it’s because the right side faces away from the afternoon sun and gets more airflow from the engine fan, but we never proved it. Second, the tires that failed first were always the ones that had been run for more than about 450 hours without a thermal scan. According to Bridgestone’s OTR tire best practices, mismanaging air pressure or ignoring thermal buildup “causes heat generation in tires resulting in reduced tire life”—and the same logic applies to crane tires in palm oil estates under continuous duty cycles.

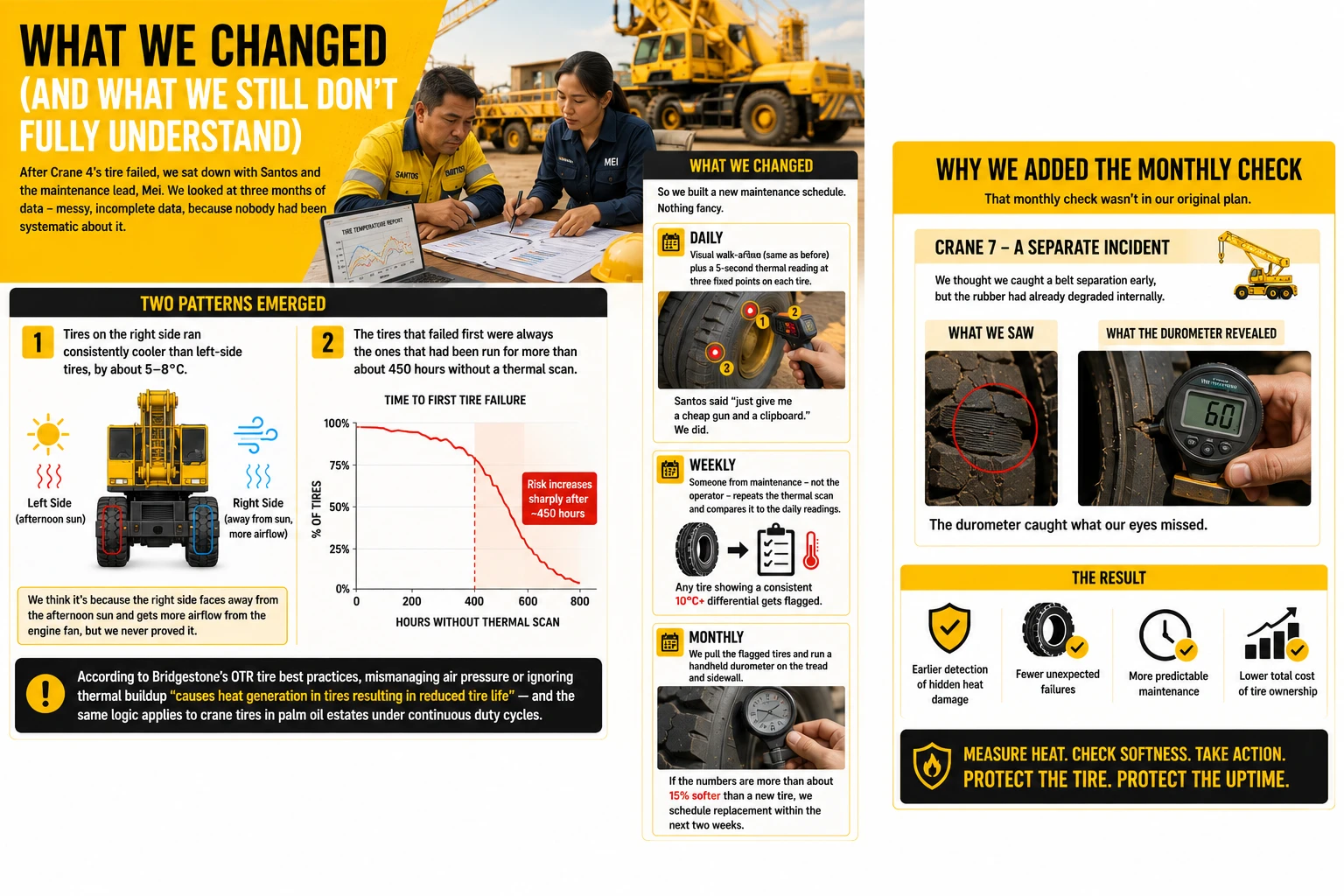

So we built a new maintenance schedule. Nothing fancy.
Daily: Visual walk-around (same as before) plus a 5-second thermal reading at three fixed points on each tire. Santos said “just give me a cheap gun and a clipboard.” We did.
Weekly: Someone from maintenance – not the operator – repeats the thermal scan and compares it to the daily readings. Any tire showing a consistent 10°C+ differential gets flagged.
Monthly: We pull the flagged tires and run a handheld durometer on the tread and sidewall. If the numbers are more than about 15% softer than a new tire, we schedule replacement within the next two weeks.
That monthly check wasn't in our original plan. We added it after a separate incident – Crane 7, a different unit, had a belt separation that we thought we caught early, but the rubber had already degraded internally. The durometer caught what our eyes missed.
Most people assume bias-ply tires don’t get belt separation. That’s wrong. They get a similar failure – ply shifting, breaker edge separation – that behaves almost identically.
What’s different is how the tire spreads heat.
In a RUNGOLD bias-ply crane tire, the multiple crossed nylon cord layers create more internal friction than a radial. That means they run hotter by nature – roughly 5–10°C warmer than a comparable radial under the same load. But they also handle sidewall cuts better.
The trade-off is real. In palm oil estate conditions – sharp palm frond stubble, random scrap metal, soft ground that makes tires squirm – bias-ply often outlasts radial even with the higher heat. But only if you manage that heat.
We learned that the hard way on Crane 4. The tire that failed was a RUNGOLD bias-ply with our standard tread compound. It wasn’t defective. It was just run too long without a thermal check, on a crane that had a slightly misaligned axle (we found that later – a bent tie rod that added a couple of degrees of toe-in).
The belt separation wasn't a tire problem. It was a schedule problem.
Santos came up with this, not engineering:
“If the left front is hotter than the right front three days in a row, call Mei before you call for a new tire.”
That’s not perfect science. Sometimes it’s a false alarm – a rock stuck in the rim, a brake dragging. But since we started following his rule, we’ve caught three developing failures before they became roadside replacements.
Mei added her own: any tire that gets flagged twice in a 60-day period gets pulled for a full inspection, even if the durometer looks okay. “Better to waste an hour than lose a shift,” she said.
We have one open question. Crane 4’s replacement tire – same RUNGOLD model, same position – has run for about 500 hours without any heat anomaly. Same axle alignment, same operator, same loads.
Why did the first one run so hot? We never proved it. The damaged tire got sent back for teardown, but the report came back “inconclusive – possible manufacturing variance or previous impact damage.”
That’s the kind of answer you live with in the field. Not everything gets solved.
Here’s what we run today on all eight cranes in the estate: daily thermal mapping (three points per tire, recorded on a whiteboard); weekly differential check (maintenance compares against fleet average – usually around 78°C for bias-ply in our conditions); monthly durometer test on any tire that’s shown a 10°C+ differential; and a quarterly axle alignment check – because that bent tie rod cost us one tire for sure. Regular inspection and thermal monitoring, as highlighted in Bridgestone’s surface mining tire guidelines, help avoid “tire-related equipment downtime” in high-cycle environments like ours.
Since we started, belt separation failures have dropped from about one every 1,200 operating hours to roughly one every 2,500 hours. That’s not zero, but it’s a lot less unplanned downtime.
The biggest change wasn’t the tire. It was giving Santos a thermal gun and actually looking at his numbers.
For more field data and bias-ply tire specifications, see RUNGOLD OTR tires and our case studies.
Why did the left front tire fail first on Crane 4?
We think it was a combination of axle misalignment (toe-in about 1.5° over spec) and sun exposure on that side. But we never fully proved it. The replacement tire hasn’t failed.
Can I use a thermal gun instead of an expensive camera?
Yes. Santos used a $40 infrared gun. The key is consistency – same spot, same time of day, same load condition.
Does RUNGOLD recommend bias-ply for all palm oil crane applications?
Not all. In very high-speed haul cycles (over 25 km/h), radial may run cooler. But for typical crane duty cycles in estates – short moves, heavy lifts, sharp debris – bias-ply works well if you monitor heat.
How long should a belt-separation warning be ignored?
Zero days. If a tire shows a consistent 10°C+ difference from its mate for three consecutive shifts, pull it. We learned that after Crane 4.
