In typical high-impact conditions such as mines, quarries, and gravel roads, tire failure is often not caused by uniform wear but by structural damage resulting from instantaneous impact loads, sharp material punctures, and localized stress concentration. For mining operators, a single blowout means not only the loss of the tire itself but also increased downtime, reduced transport efficiency, and higher maintenance costs.
In this reliability‑centric environment, bias tires (also known as cross‑ply tires) continue to hold an important position in mining equipment thanks to their unique structural design. This article systematically analyzes the advantages of bias tires in extreme impact environments from three perspectives: structural mechanism, performance comparison, and operational adaptability.

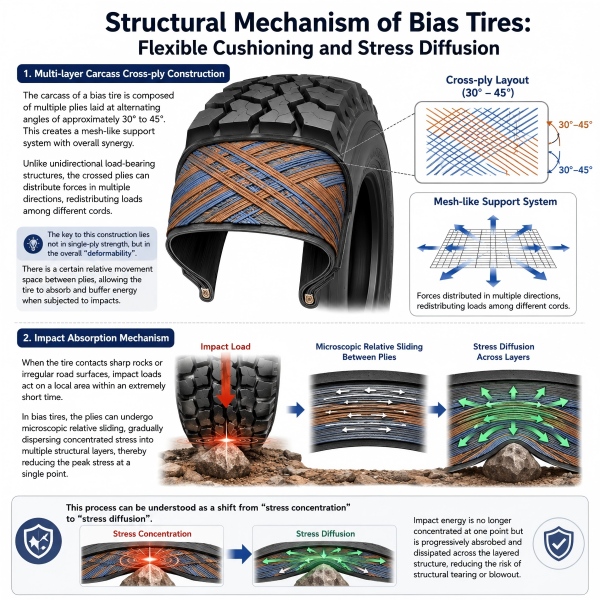

The carcass of a bias tire is composed of multiple plies laid at alternating angles of approximately 30° to 45°. This creates a mesh‑like support system with overall synergy. Unlike unidirectional load‑bearing structures, the crossed plies can distribute forces in multiple directions, redistributing loads among different cords.
The key to this construction lies not in single‑ply strength, but in the overall “deformability”. There is a certain relative movement space between plies, allowing the tire to absorb and buffer energy when subjected to impacts.
When the tire contacts sharp rocks or irregular road surfaces, impact loads act on a local area within an extremely short time. In bias tires, the plies can undergo microscopic relative sliding, gradually dispersing concentrated stress into multiple structural layers, thereby reducing the peak stress at a single point.
This process can be understood as a shift from “stress concentration” to “stress diffusion”. Impact energy is no longer concentrated at one point but is progressively absorbed and dissipated across the layered structure, reducing the risk of structural tearing or blowout.
In mining conditions, tire selection is essentially a matter of matching structural characteristics with operational demands. Bias and radial tires differ significantly in design philosophy.
Bias tires, with their multi‑layer crossed‑ply structure, absorb energy through structural deformation when facing instantaneous impacts, providing more stable impact resistance. Radial tires rely on a steel belt package for rigid support, offering advantages at high speeds, but are more prone to stress concentration under strong impacts.
In terms of puncture and cut resistance, the cross‑ply structure of bias tires effectively stops crack propagation, localizing damage. In radial tires, the cord arrangement can allow cracks to extend along structural lines, expanding the damaged area.
For sidewall performance, bias tires have higher lateral rigidity, making them more suitable for low‑speed, heavy‑load, and frequent steering environments. Radial tires have softer sidewalls, better suited for highway conditions but weaker against lateral impacts in complex terrain.
Mining operations typically feature low speed, high loads, irregular surfaces, and frequent impacts – conditions that emphasize resistance to damage rather than ride comfort. This is where bias tires show superior adaptability.
Under impact, the relative displacement between plies in a bias tire effectively disperses stress, preventing load concentration at a single point and reducing the risk of instantaneous structural failure. This energy‑absorbing behavior maintains overall structural stability even under extreme impacts.
In contrast, radial tires are more likely to suffer localized structural damage under strong impacts, and the damage can propagate rapidly along structural lines, increasing blowout risk.
Mine roads often contain many sharp stones and metallic debris. The interwoven cord structure of bias tires restricts crack growth, keeping damage localized and preventing it from quickly evolving into a complete failure. This significantly extends tire service life in harsh environments.
Under heavy loads, bias tires maintain a stable footprint. Their carcass structure provides excellent lateral support, giving equipment better stability and traction when turning, climbing, and in other demanding maneuvers. This is especially valuable for mining dump trucks and loaders.
Mining Dump Trucks: It is generally recommended to select high ply‑rating bias tires to increase load capacity and impact resistance, while paying attention to sidewall reinforcement designs for greater durability. [Internal link to product]
Loaders and Excavators: Prioritize tires with cut‑resistant compounds and deep tread patterns to cope with frequent contact with sharp stones.
Underground Mining Equipment: Due to confined spaces and complex conditions, tire safety is especially critical. The impact resistance and blowout prevention of bias tires help improve equipment availability.
When selecting specific tires, key indicators include ply rating, rubber compound (cut‑resistant, tear‑resistant), tread depth, and sidewall protection structure.
Maintaining proper inflation pressure is essential for extending tire life. Under‑inflation increases inter‑ply friction, generating more heat and accelerating structural fatigue.
Regularly inspect the tread for cuts or embedded foreign objects, and address any issues promptly to prevent damage from spreading.
Reasonable tire rotation can balance wear across different positions, extending overall service life and improving efficiency.
In high‑impact environments such as mines, the core value of a tire lies in reliability and adaptability. Through a multi‑layer crossed‑ply structure, bias tires effectively absorb impact energy and disperse local stress, demonstrating stable advantages in impact resistance, blowout prevention, and damage containment.
Under typical mining conditions of low speed, heavy loads, and complex surfaces, this structural design still offers irreplaceable application value. With continuous advances in materials technology and manufacturing processes, bias tires will continue to play an important role in construction machinery and mining transportation.
